IPD30N10S3L-34

INFINEON SP000261248

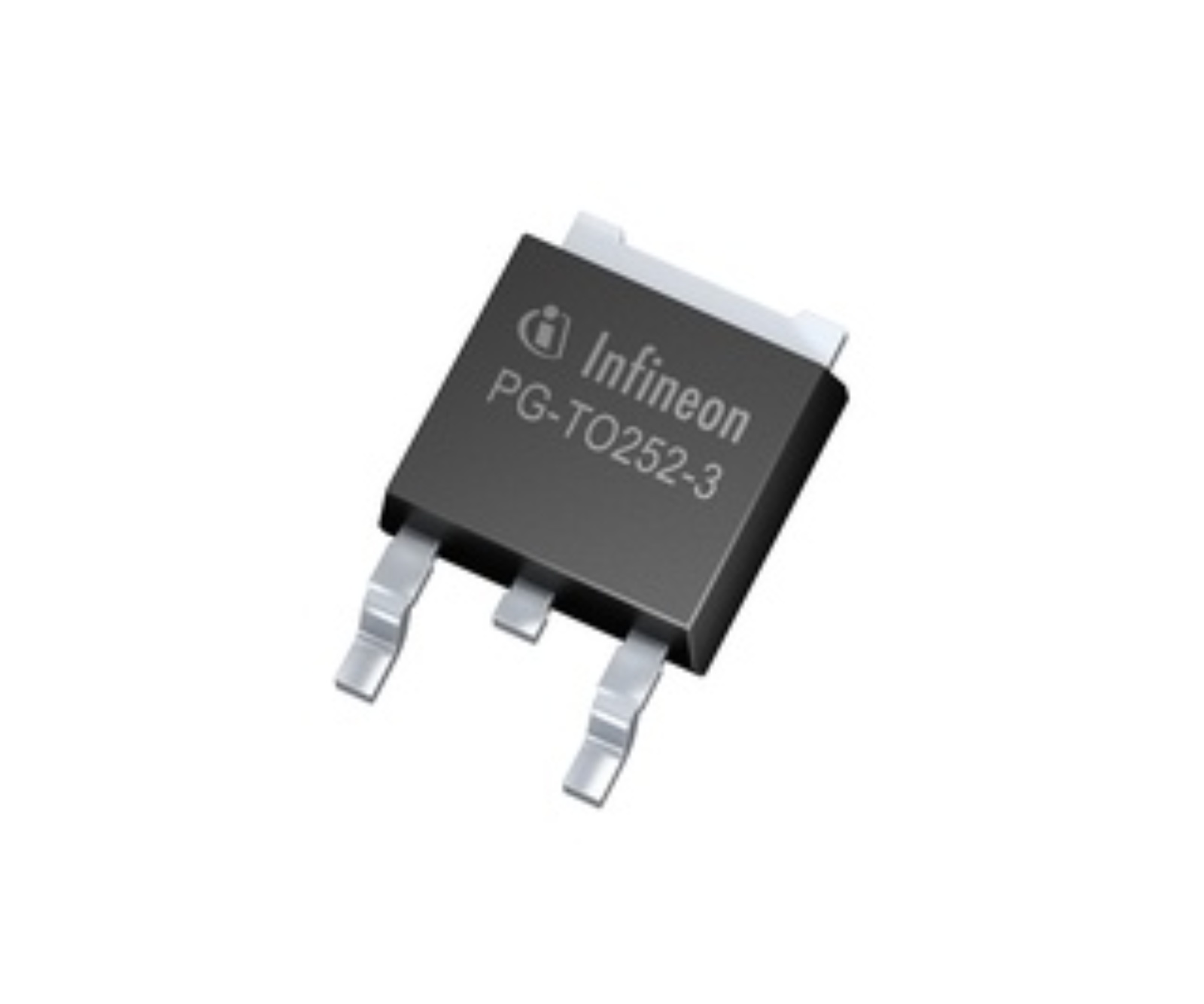

image shown is a representation only

INFINEON

N-CH 100V 30A 31mOhm TO252-3
Supplier: Infineon Technologies
Matchcode: IPD30N10S3L-34
Rutronik No.: TMOSP9762
Unit Pack: 2500
MOQ: 2500
package: TO252
Packaging: REEL
Best Choice
   Please login or register for custom pricing and delivery terms.
In Stock
This article is available in two variations:

Unit Pack
1
MOQ
1
Packaging
REEL
Unit Price
0.2741 $
Total Value
0.27 $
Unit Pack
2500
MOQ
2500
Packaging
REEL
Unit Price
0.329 $
Total Value
822.50 $

Prices

2,500 0.329 $
5,000 0.3236 $
10,000 0.3184 $
15,000 0.313 $
20,000 0.3076 $

N-CH 100V 30A 31mOhm TO252-3 Description

Summary of Features

  • N-channel - Enhancement mode
  • Automotive AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green product (RoHS compliant)
  • 100% Avalanche tested

Benefits

  • highest current capability 180A
  • low switching and conduction power losses for high thermal efficiency
  • robust packages with superior quality and reliability
  • optimized total gate charge enables smaller driver output stages

Target Applications

  • 48V inverter
  • 48V DC/DC
  • HID lighting

Parameter

Configuartion
N-CH
V(DS)
100 V
I(D)at Tc=25°C
90 A
RDS(on)at 10V
31 mOhm
Package
TO252
Q(g)
24 nC
P(tot)
31 W
R(thJC)
2.6 K/W
Logic level
YES
Automotive
AEC-Q(101)
Mounting
SMD
Fast bodydiode
NO
Leadfree Defin.
RoHS-conform
Packaging
REEL
Supplier Part
SP000261248
ECCN
EAR99
Customs Tariff No.
85412900000
Country
Malaysia
ABC-Code
B
Supplier Leadtime
27 weeks
