3990251003

TELIT 3990251003

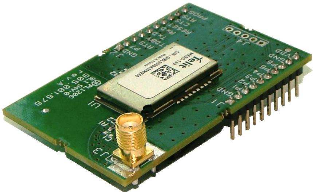

image shown is a representation only

TELIT

ME70-169/DIP-WA
Supplier: Telit
Matchcode: ME70-169/DIP-WA
Rutronik No.: ISM1609
Unit Pack: 1
MOQ: 1
Packaging: INDIVIDUAL
   Please login or register for custom pricing and delivery terms.
In Stock
54.56 $
54.56 $

Prices

1 54.56 $
20 48.67 $
100 41.23 $

ME70-169/DIP-WA Description

The Telit ME70-169 is a CE certified wireless M-Bus module compliant with the EN13757 part 4 2013 wireless M-Bus standard. The ME70-169 operates in the 169 MHz band and runs Wireless M-Bus N mode protocols, defined by EN13757-4 2013 for this band.
It is ideally suited for use in one or two-way data links with gas, water, heat and electricity meters and concentrators.

Key Features

  • Tx power up to 1W with sensitivity up to -119 dBm
  • Power consumption of less than 1.5 μA in sleep mode with an RTC clock running
  • Pin to Pin compatible with other Wireless M-BUS products (ME50-868) and with ZE51/61 (Zigbee PRO)


Parameter

Frequency
169 MHz
Function
TRANSCEIVE
Datarate
19 kbps
Operat.temp.
-40 +80 °C
Supply voltage
2,3 - 3,6 V
Encryption
N Y/N
Weight
1.7 g
P(out)
27 dBm
Automotive
NO
Leadfree Defin.
RoHS-conform
Packaging
INDIVIDUAL
ECCN
EAR99
Customs Tariff No.
85423990000
Country
France
ABC-Code
A
Supplier Leadtime
12 weeks
