105.000.251

TELIT 105.000.251

image shown is a representation only

TELIT

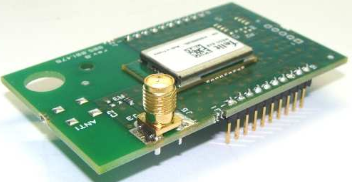

ME50-868/DIP-WA (WIREL. M-BUS)
Supplier: Telit
Matchcode: ME50-868/DIP-WA
Rutronik No.: ISM1317
Unit Pack: 1
MOQ: 2
Packaging: INDIVIDUAL
   Please login or register for custom pricing and delivery terms.
On request
47.59 $
95.18 $

Prices

2 47.59 $
20 42.45 $
100 35.96 $

ME50-868/DIP-WA (WIREL. M-BUS) Description

ME50-868 is a 868 MHz wireless module that combines high performance to small dimensions and low cost, providing the system integrator a simple and easy way to add Wireless M-Bus connectivity. It is ideally suited for use in one or two-way data links and metering data collection from gas, heat, water or other meters.

Key Features

  • Tx power up to 25mW with sensitivity up to -109 dBm
  • Power consumption of less than 1.5 μA in sleep mode with an RTC clock running
  • Download over the Air (DOTA)


Parameter

Frequency
868 MHz
Function
TRANSCEIVE
Operat.temp.
-40 +85 °C
Supply voltage
2,0 - 3,6 V
Encryption
N Y/N
Weight
1.7 g
P(out)
14 dBm
Automotive
NO
Leadfree Defin.
RoHS-conform
Packaging
INDIVIDUAL
ECCN
EAR99
Customs Tariff No.
85176200900
Country
France
ABC-Code
A
Supplier Leadtime
20 weeks
